Air Receiver Tanks
Wendland’s air receivers are used with air compressors for storage and improved operation of air systems. The vessel provides storage capacity with proper pressure and volume when normal compressor output is exceeded during peak usage. Along with reducing air-entrained moisture and oil, it reduces pulsation in the systems during peak usage and helps extend the lifetime of the compressor.
The drawings for air receivers in this website are intended as a guide and are for customer convenience.
Wendland Manufacturing can formulate and write specifications for your air receiver requirements for higher operating pressures.
|
General Notes
- See Support section for available supports.
- Manway is not required on tanks 36" or less unless unlined. Inspection couplings will be installed if manway is not required. Manway is required for all lined tanks other than galvanized. Manway size will be 12"x16" unless otherwise specified.
- Vertical legs dimension can be changed as required.
Drawings

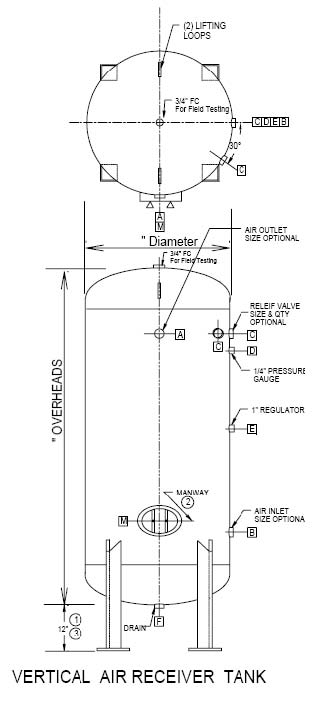

Vertical Air Receiver Tank

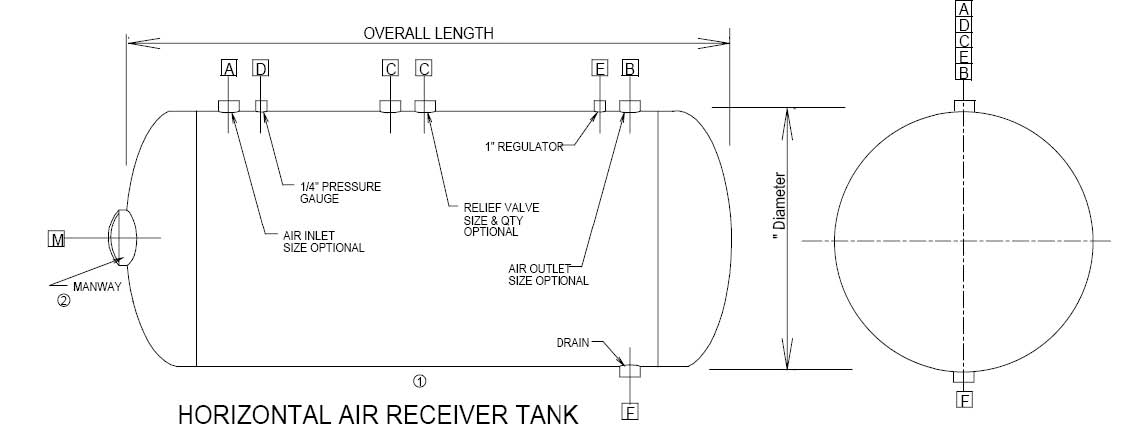

Horizontal Air Receiver Tank
|
|
