Water Heaters
Wendland’s water heater tanks are used for storage and heating of water. We furnish tank-heating units that use steam, boiler water, or electricity as the heat source. Due to our wide selection of tank capacities and the availability of tank heating units, the proper water heater tank can be economically fabricated to meet peak and normal operating demands for any job requirements. For proper sizing and selection of your water heater tank, we suggest using ASHRAE’s latest guide and data book in conjunction with this website.
The outline drawings we have provided on this page are for customer convenience and are intended as a guide only. We will custom fabricate each vessel to your requirements. We can fabricate the vessels per ASME Code with stamp or as a Wendland standard pressure tank.
Because hot water is corrosive, we recommend these tanks be internally lined for extended tank life. For interior linings, Wendland recommends Epoxoline or Cementline. Refer to the lining section of this website for other available linings.
Wendland Manufacturing can formulate and write specifications for your particular hot water storage tank requirements.
|
General Notes
- If centerline of vessel is on girth seam, openings will be offset 6".
- See accessory details for alternate supports.
- Manway is not required on tanks 36" or less unless lined. Inspection couplings will be installed if manyway is not required.
- Vertical legs dimension can be changed as required.
Drawings

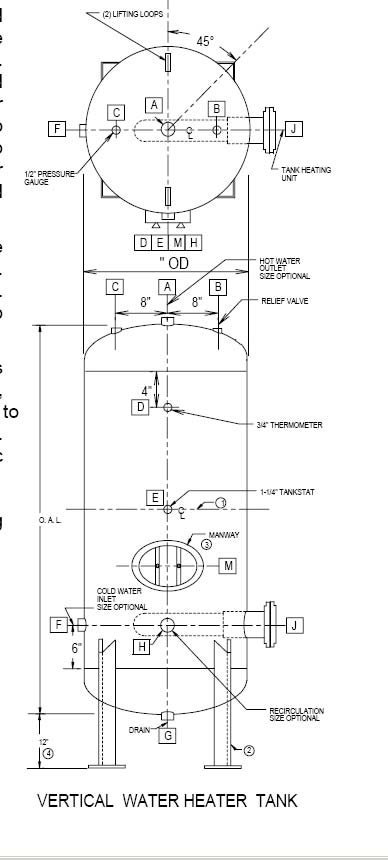

Vertical Water Heater Tank
Horizontal Water Storage Tanks
|
|
