Flash Tanks
Our flash tanks are intended for flashing of high-pressure condensate into steam. It can also be used for cooling low-pressure steam prior to the steam’s return to boiler, condensate receiver, or discharge into sewer.
The flash tank drawings in this website are our standards. We can custom fabricate each vessel to your exact requirements. We also offer, at customer option, an inlet spray pipe. The area of the drilled holes in the spray pipe will be equal to the cross sectional area of the pipe.
The Flash tank exterior will be power wire brushed and painted with one coat of standard shop primer. Galvanized tanks are available at customer option. Tanks larger than 36” diameter will require a manway to meet ASME code specifications.
|
General Notes
- Flash tank material stocked is normally for 150 psi. Contact the factory if you require a different size or design pressure.
- Vertical flash tanks are also available.
Drawings

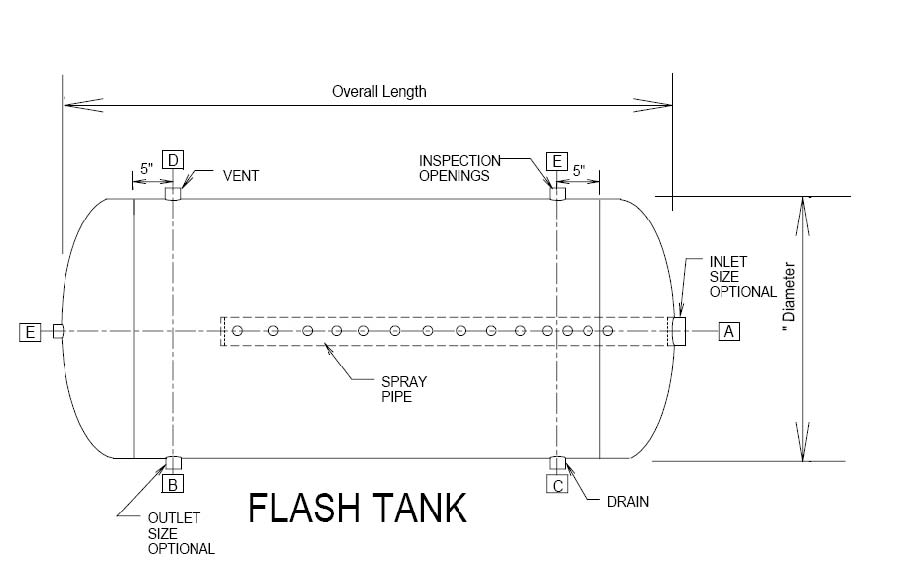

Flash Tank

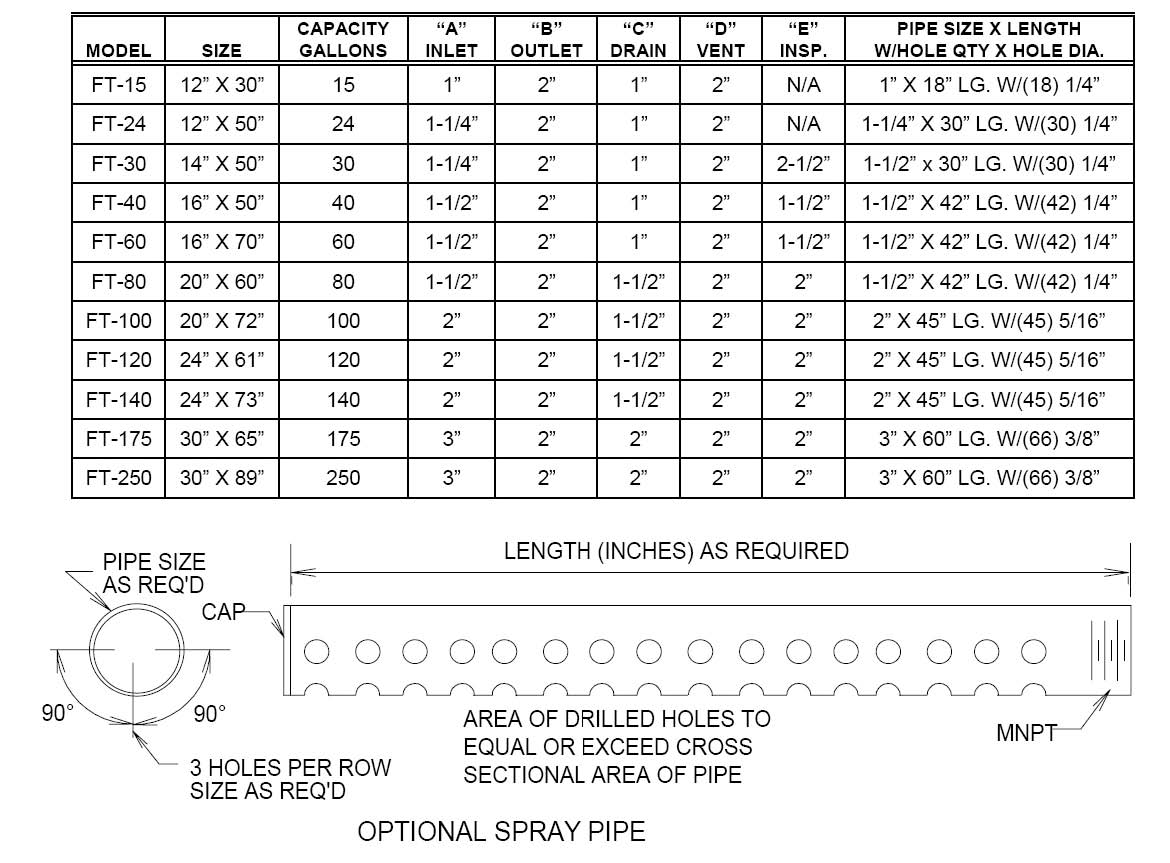

Flash Tank Drawing Legend

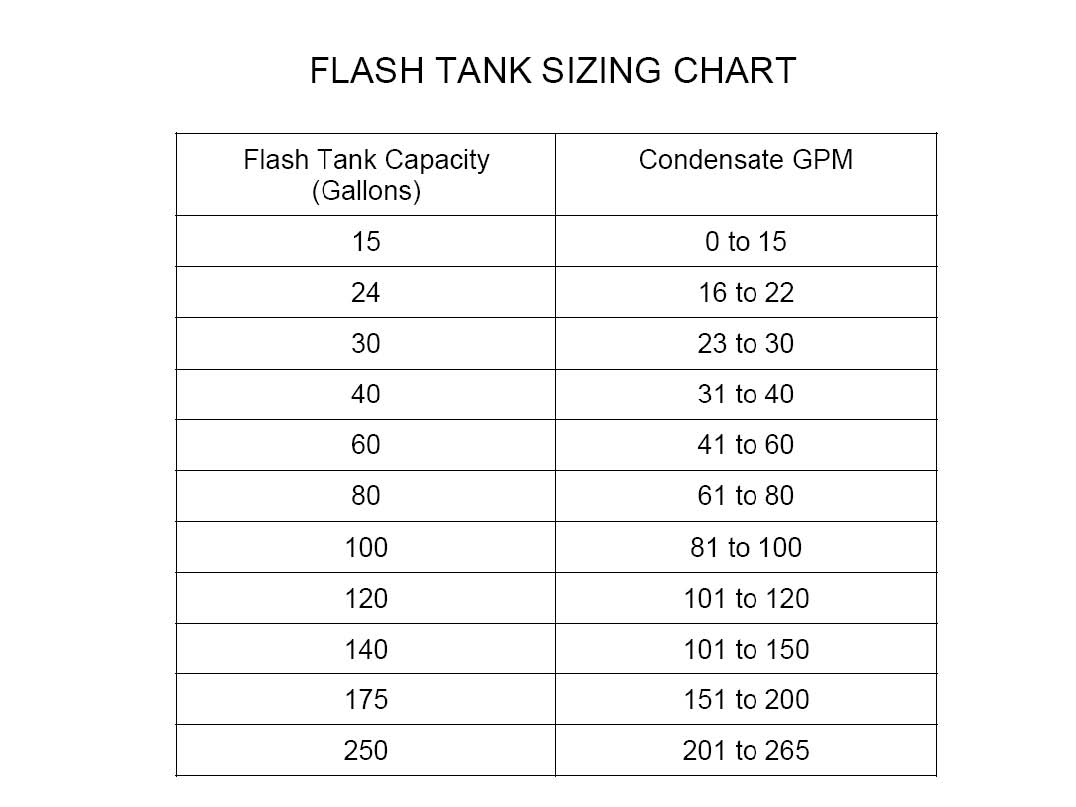

Flash Tank Sizes
|
|
