Fire Protection Tanks
The Wendland fire protection tank is a pressure tank used for private fire protection systems. These tanks are constructed in accordance with the latest ASME Code specifications, under Section VIII, Division 1 and meet the specifications as required by the latest edition of National Fire Protection Association pamphlet #22.
To determine the capacity for the tank in this system, we suggest you refer to the latest NFPA pamphlet #13, “Standard for the Installation of Sprinkler Systems” In all cases, sizing must meet the requirements of the local or state governing authority.
The outline drawing shown in website was specifically designed to meet ASME and NFPA requirements. If the governing authority requires changes, Wendland can fabricate the custom designed vessel to your requirements.
In addition to the standard hydrostatic test dictated by the ASME Code, we will test the tank to meet NFPA #22 requirements. NFPA requires the tank to be tested 24 hours at two-thirds capacity at normal working pressure. The NFPA requires that the tank not lose more than one-half pound pressure in this
|
period. We will furnish a signed certificate for the file of the governing authority certifying that the test has been successfully completed.
General Notes
- See Support section for available supports.
- Fire Protection Tanks are available in several design pressures.
Drawings

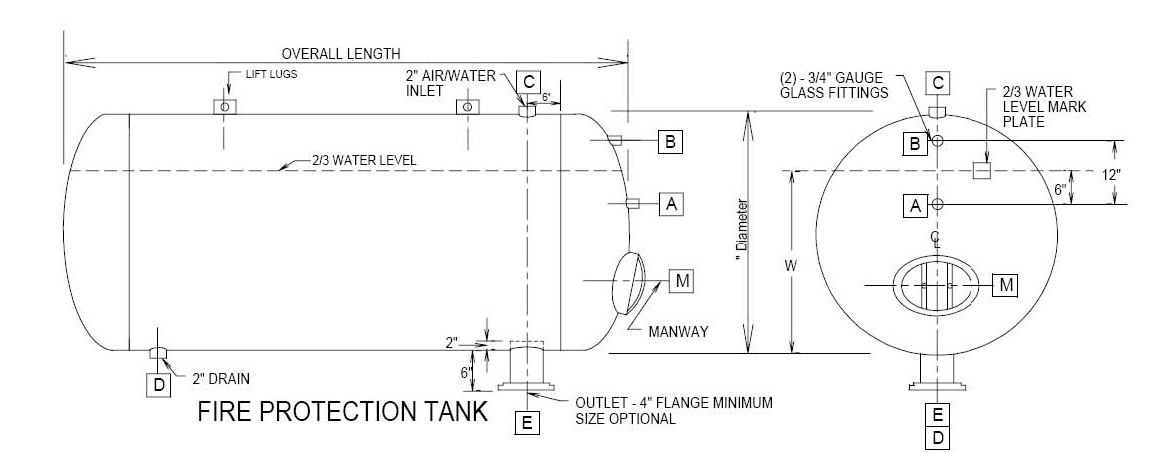

Fire Protection Tank Drawing

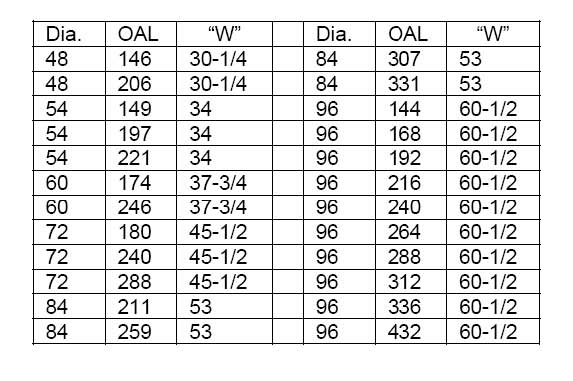

Fire Protection Tank Size Chart |
|
