Air Separator Tanks
Our air separator tanks are intended for separation of air and water.
The air separator tank drawings in this manual are our standards. We can custom fabricate each vessel to your exact requirements.
Air separator tank exterior will be power wire brushed and painted with one coat of standard shop primer. Tanks larger than 36” diameter will require a manway to meet ASME Code specifications.
|
General Notes
- All separators with 3" in/out and below do not have skirts.
- Larger sizes of inline air separators are available upon request.
- Hanger lugs can be supplied in lieu of skirt if requested.
Drawings

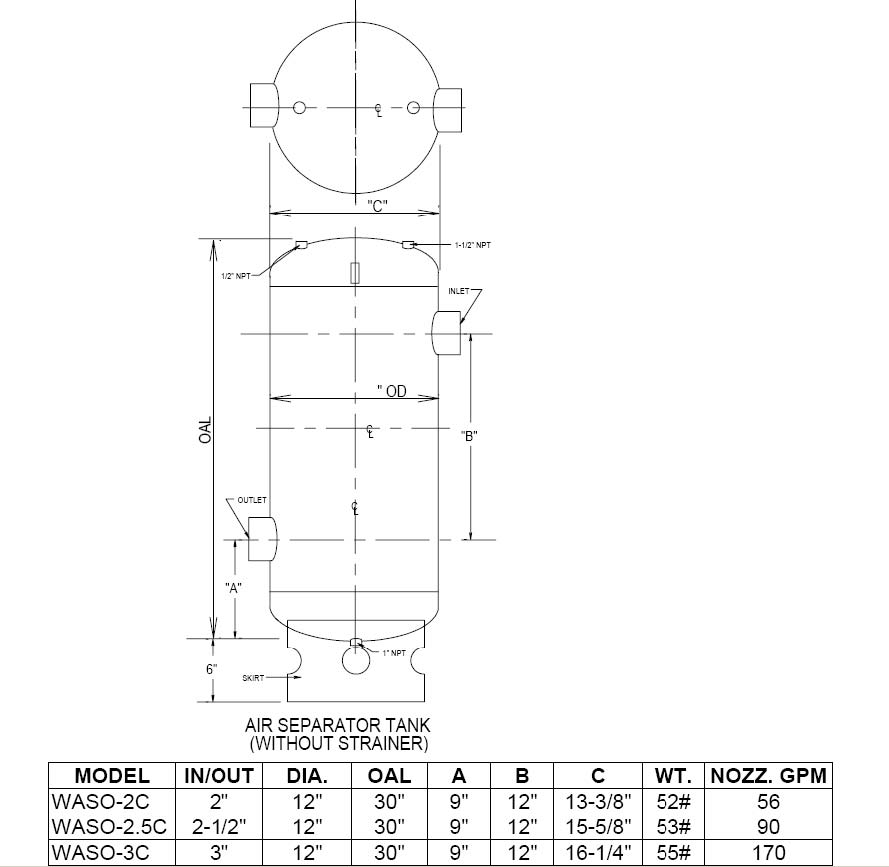

Standard Air Separator Tank

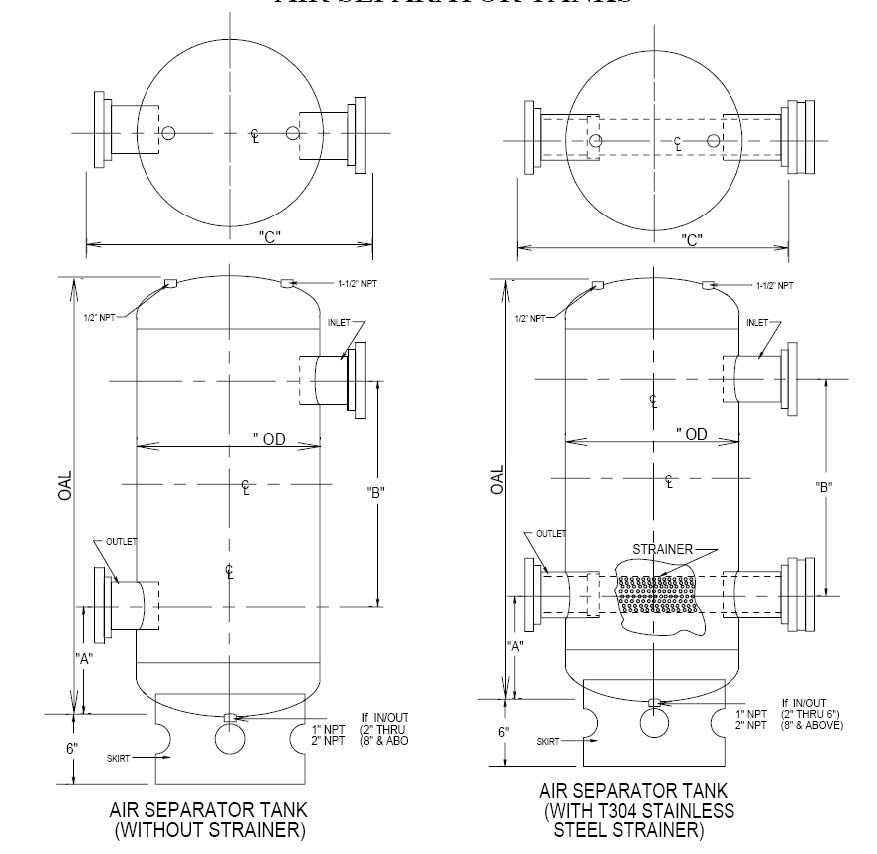

Air Separator Tank with and without Strainer

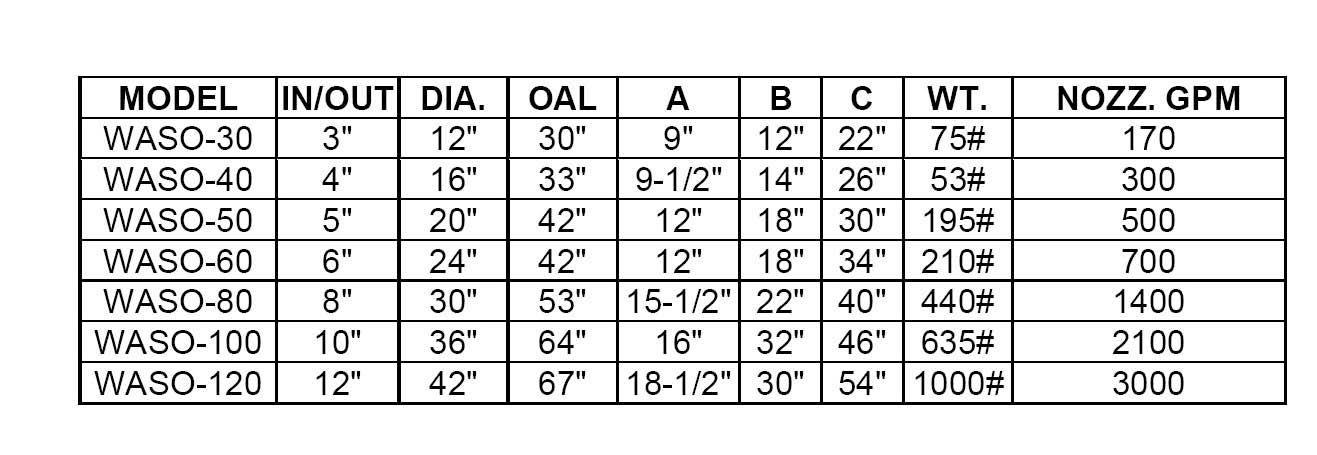

Air Separator Tank Sizes
|
|
