Support Accessories
We offer a complete line of tank accessories and steel supports. The dimensional outline drawings show our standard tank supports. We can furnish supports to your specifications, but we recommend standard supports as they are more economical.
The different kinds of standard tank supports available for vertical tanks are: skirt, angle leg supports, and heavy-duty wide flange beam supports. Supports for horizontal tanks are: overhead expansion tank hanging brackets, base legs, and saddle supports. All supports are thoroughly cleaned and painted to match tank exteriors unless otherwise specified.
Please contact the factory if we can be of any
assistance for special supports or accessories.
General Notes: Skirts
- Mounting holes are not factory drilled, as they are left for field drilling to suit actual anchor bolt measurements.
- There are four standard skirt access openings. For changes to the standard, consult factory.
|
General Notes: Angle Leg & Heavy Duty WFI Beam Supports
- Mounting holes are not factory drilled, as they are left for field drilling to suit actual anchor bolt measurements.
- Vertical leg dimensions can be changed as required.
- Legs will straddle natural centerlines unless otherwise required.
General Notes: Saddle Supports
- Mounting holes are not factory drilled, as they are left for field drilling to suit actual anchor bolt measurements.
- The Type II saddle supports for 84" diameter and greater will be fabricated with full web plate for added strength.
- Pipe leg bosses are available as an option.
Drawings:

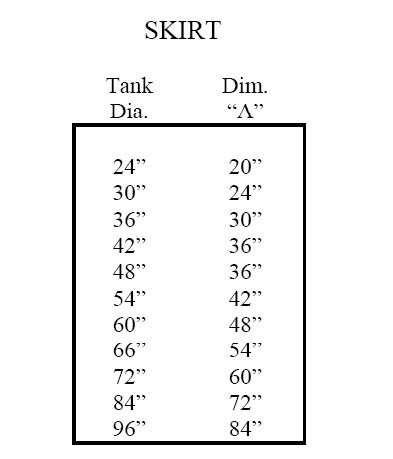

Skirt, Skirt Size

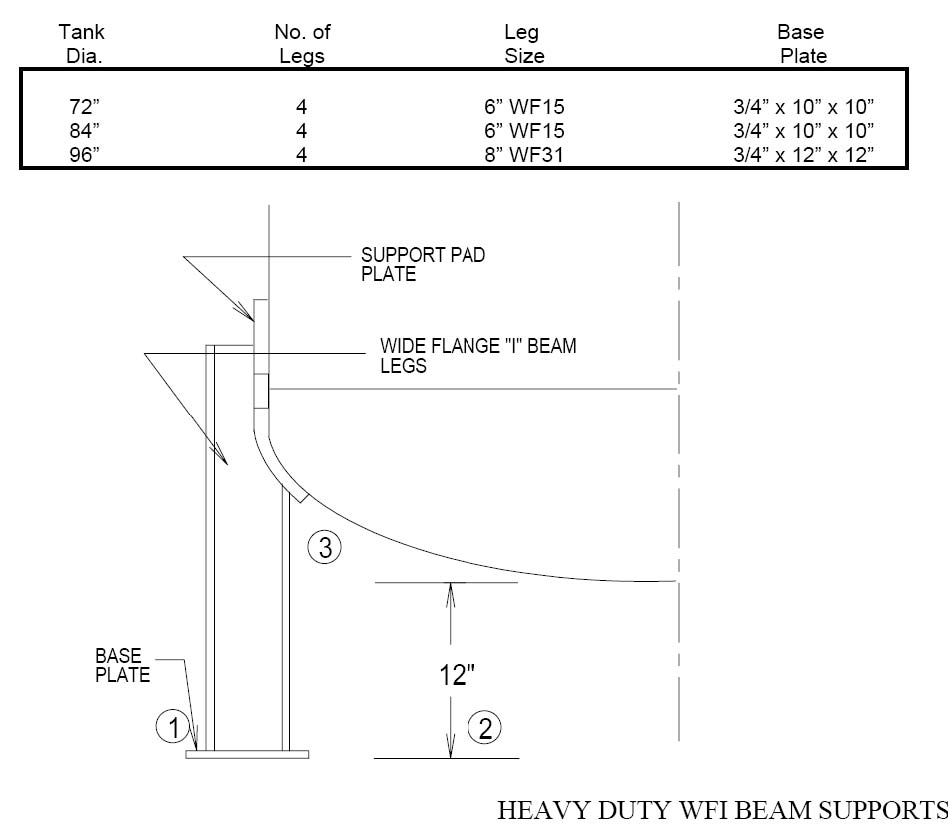

Angle Leg and Angle Leg Size, Heavy Duty WFI Beam Supports

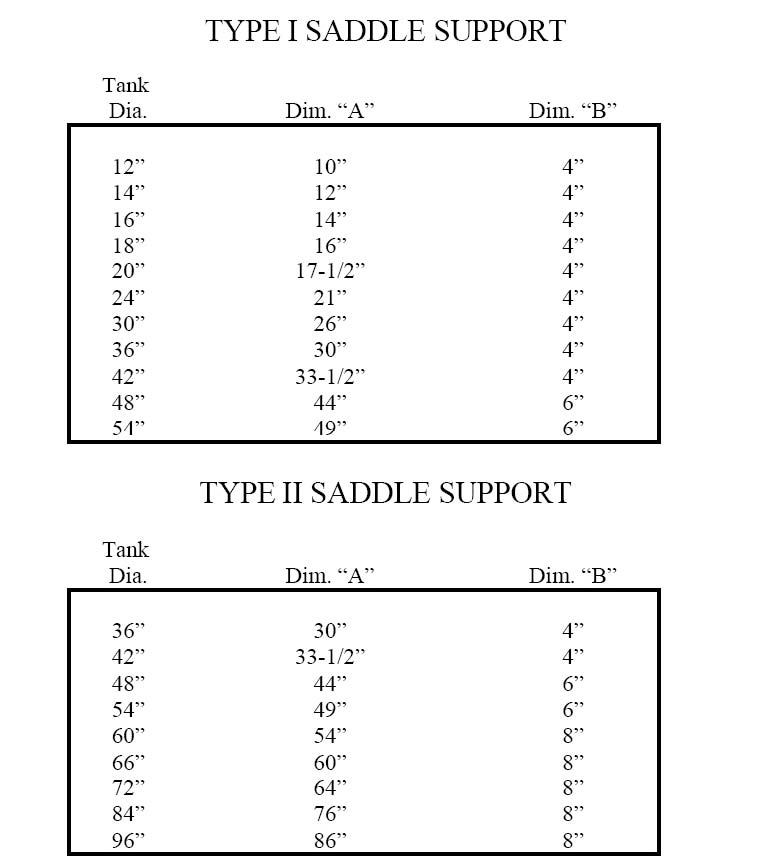

Saddle Supports, Saddle Size |
|
