Light Gauge Tanks
Wendland's light gauge tanks are used for a variety of purposes. Each Wendland vessel is fabricated to your specific requirements.
–Overhead Tanks
–Overhead Fuel
–Skid Tanks (up to 20,000 gallons)
–Trailer-Ready Tanks with Baffles & Full Buffers
–Double Wall
–Containment Boxes
Oval Lube Oil Tanks - OB Series
| Gallons |
Height |
Width |
Length |
GA |
Weight |
| 275 |
27" |
44" |
60" |
14 |
200 |
| 330 |
27" |
44" |
72" |
14 |
235 |
|
Drawings
Light Gauge Tanks

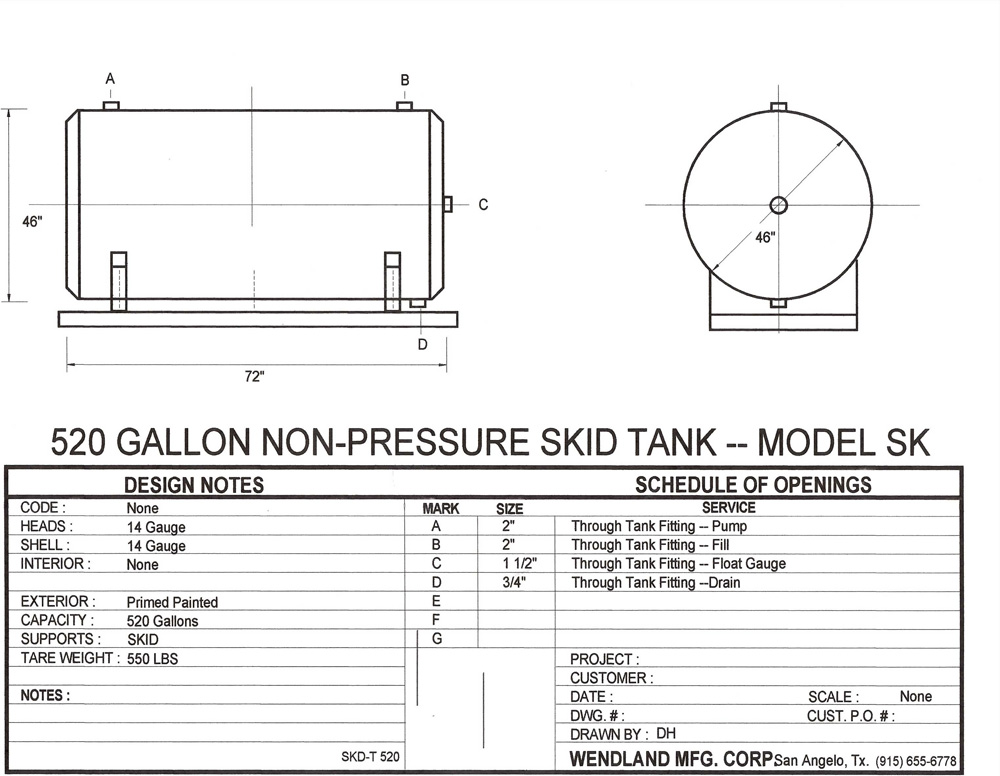

520 Gallon Non-Pressure Skid Tank
345 Gallon Non-Pressure Skid Tank
520 Gallon Overhead Storage Tank

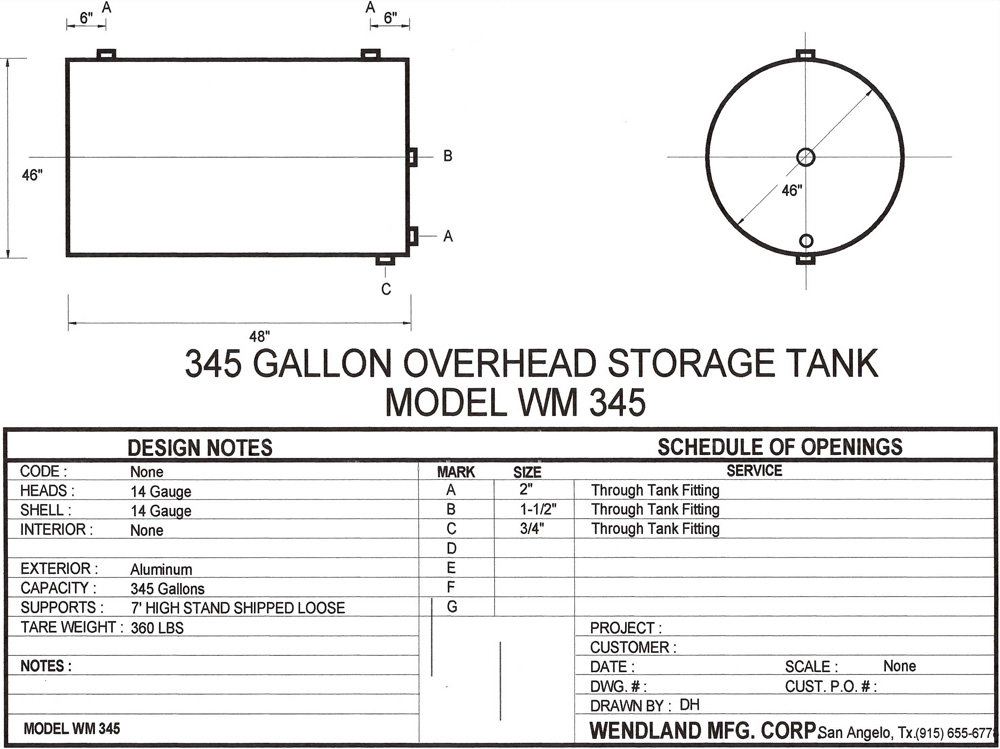

345 Gallon Overhead Storage Tank
520 Gallon Trailer Tank

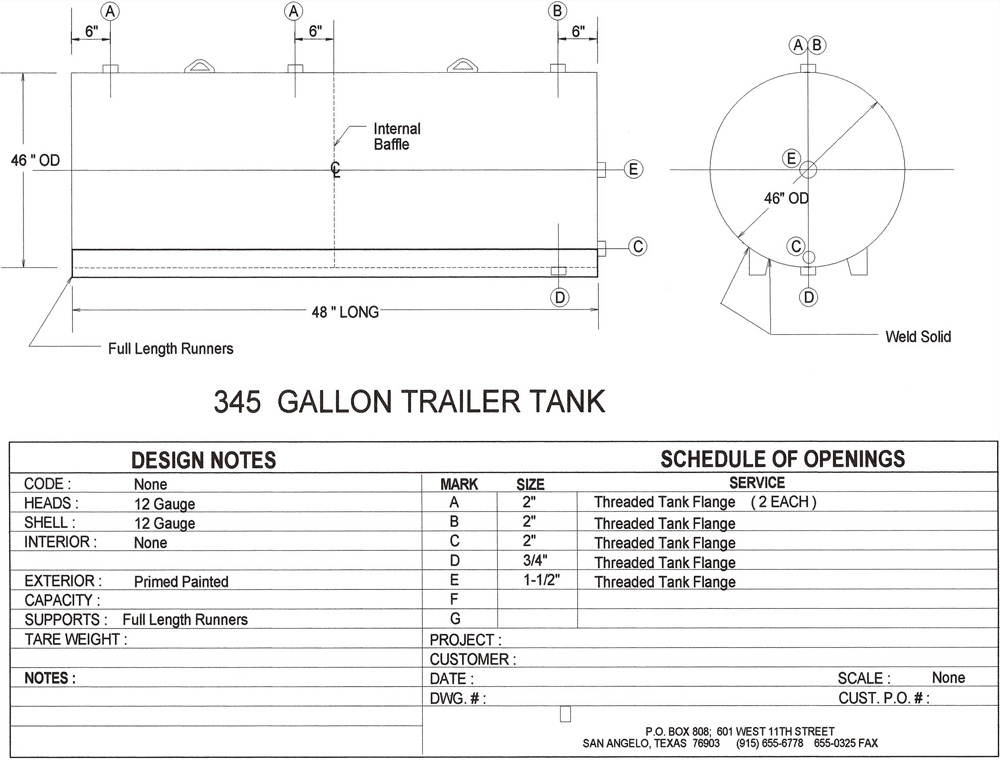

345 Gallon Trailer Tank

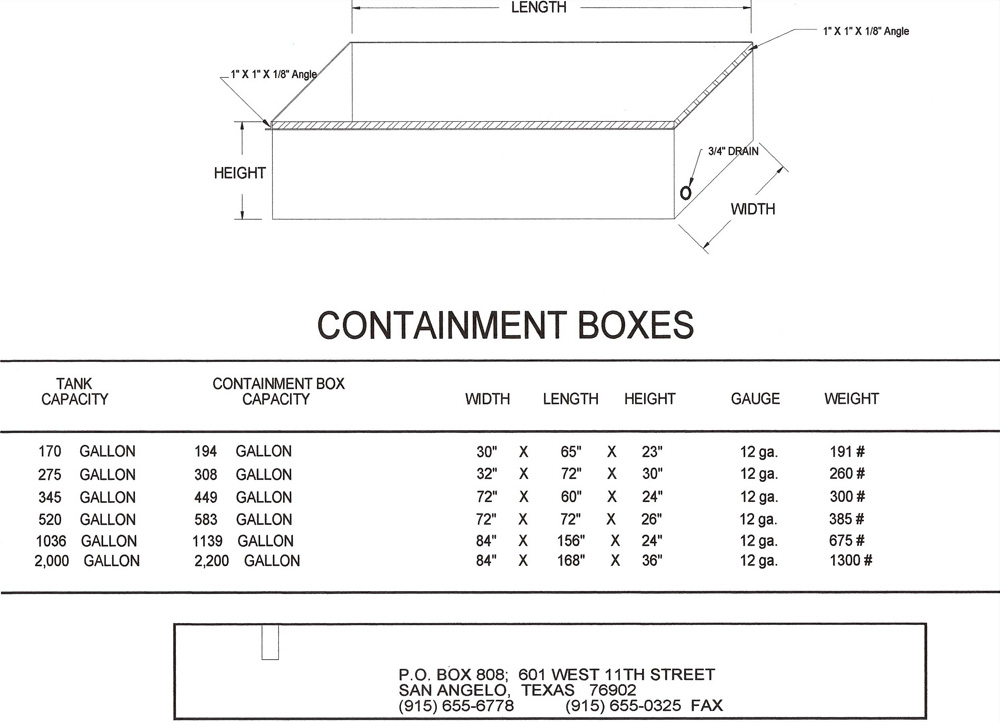

Containment Boxes

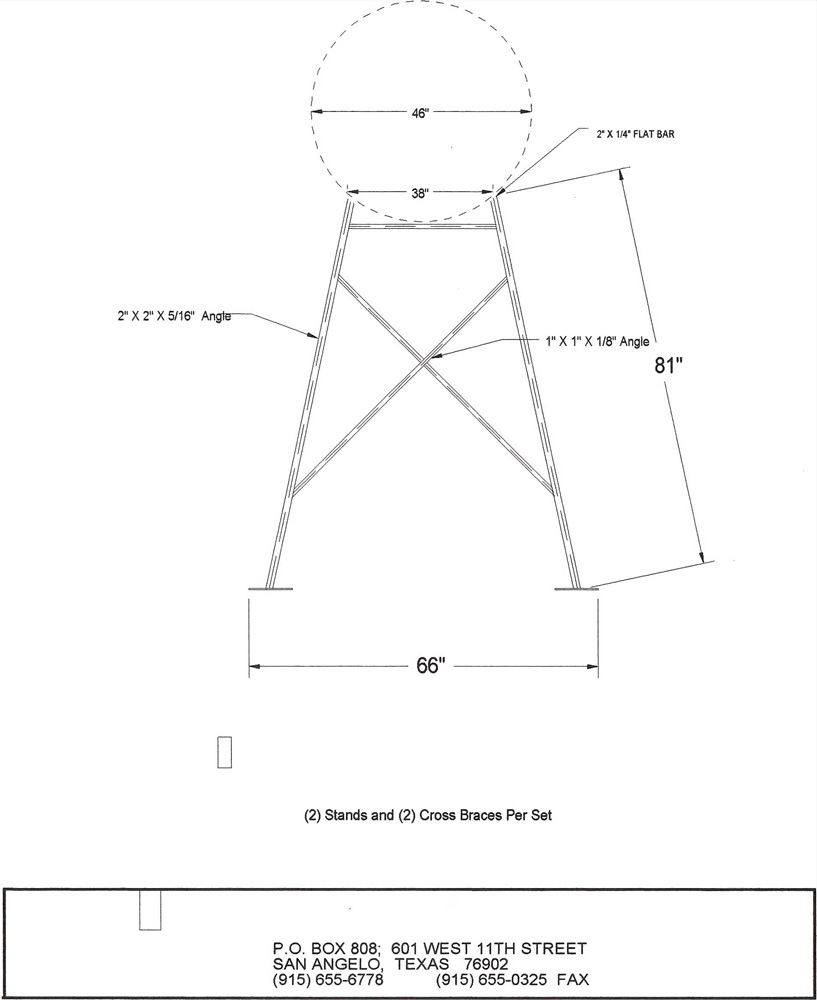

Tank Stands
|
|
