Chill Water/Buffer Tanks

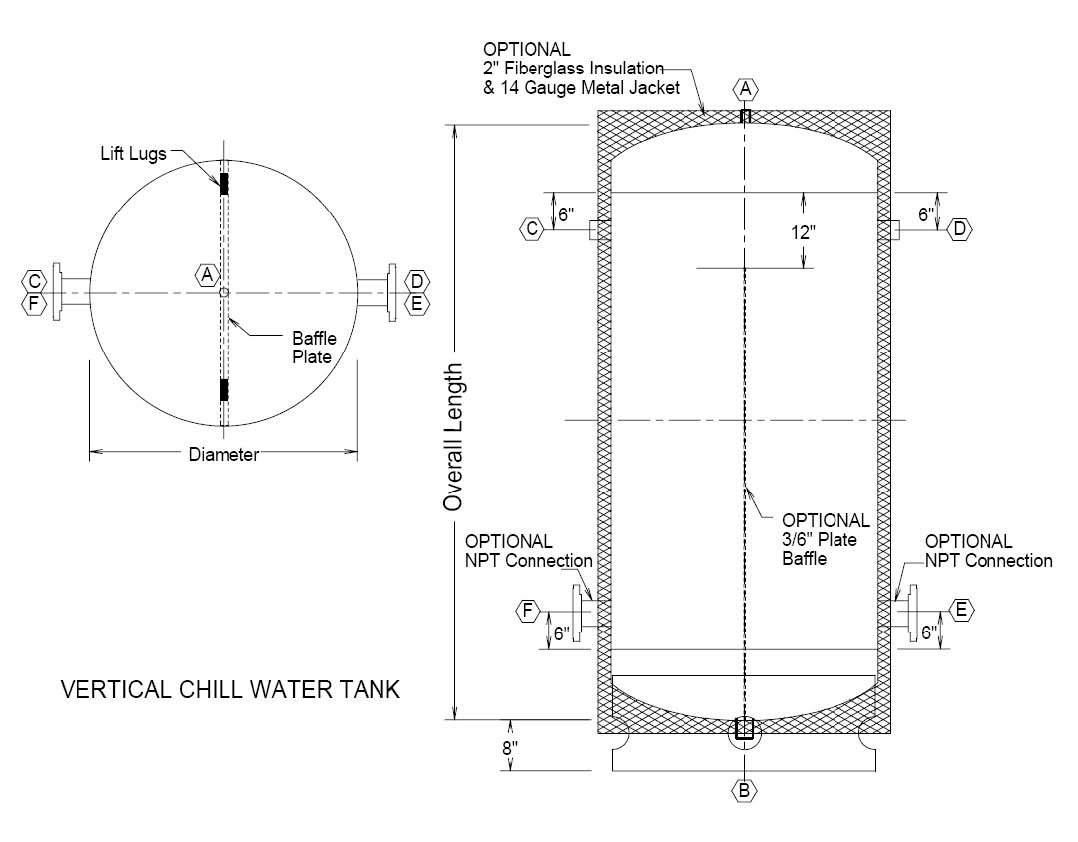

Our chill water tanks are used in conjunction with the building's chiller system for additional volume required for operation. The chill water tank drawing on this page is our standard. We can custom fabricate each vessel to your exact requirements. We offer, at customer option, NPT connections in lieu of flanges, internal baffle plate, insulation and metal jacket.
The chill water tank exterior will be power wire brushed and painted with one coat of standard shop primer. Galvanized tanks are available at customer option. Tanks Larger than 36" diameter will require a manway to meet ASME Code specifications.
|
General Notes
- Chill water tank material stocked is normally for 125 psi. Contact the factory if you require a different size or design pressure.
Drawings
Chill Water/Buffer Tanks
|
|
